Two decisions make or break a shadow box: how deep it is, and how the cars are held. A car sitting flat at the bottom of a box deeper than it needs is in shadow and reads as stored. The same car brought forward on a small mount, at a depth matched to it, reads as displayed.
Whether a shadow box is the right format at all - rather than a case - is a separate question, answered in display case vs shadow box. This is how to build one properly once you have decided.
1. Match the depth to the car
Shadow boxes are usually 25-75 mm deep. A 1:64 car is about 22 mm tall, or 30 mm with a wing, so:
- Car height, plus the mount, plus a few millimetres of clearance is the depth you actually want - typically 40-50 mm for 1:64 on a low plinth.
- If the box is deeper than that, bring the cars forward rather than letting them sit against the backing. Depth behind a car is dead space that reads as shadow.
- Never let a car touch the glazing. Contact marks the panel and transfers whatever condensation forms on it.
2. Choose a backing that is not fabric
Most shadow boxes come with a fabric-covered backing, and fabric sheds fibres for as long as it exists. Inside a closed box those fibres land on the cars, which is a particularly annoying kind of dust because you have to open the box to remove it.
Better options: mount board, painted MDF, or a printed scene. Keep it matte and darker than the cars so the models stay the brightest things in the frame - the same rule as any display floor, worked through in the floor disc guide.
3. Hold the cars without glue
| Method | Holds | Reversible? |
|---|---|---|
| Museum putty under one tyre per axle | Well, for light cars on a horizontal shelf | Yes |
| Small acrylic or timber plinth, car putty-ed to it | Well, and it brings the car forward | Yes |
| Screw up through a plinth into the chassis screw hole | Very securely | Yes, if the car has that hole |
| Brass pin or rod through the backing | Very securely, and it can float the car | Only for the box, not the car |
| Glue, tape or hook-and-loop on the car | - | No - residue on tyres and paint |
Getting a car off its original packaging plinth, so it can go on yours, is in how to get a diecast car off its base. Building the plinth itself is in how to make a display base for a model car.
4. Lay it out like a composition
A shadow box is read as one picture, not as a shelf of separate objects.
- Side-on profiles read best in a shallow frame; a car pointing at the viewer becomes a blunt shape.
- Align to a grid or a clear diagonal. Scattered placement reads as a jumble behind glass.
- Leave breathing space. Spacing rules are in how to arrange collectibles on a shelf.
- Step the levels if you use internal shelves, so a lower car does not hide the one behind it.
5. Lighting a box that was never meant to be lit
Almost no shadow box ships with light, and an unlit box in a lit room behaves like a dark mirror - you see the room instead of the cars. If you are adding light:
- A slim strip along the inside top front edge, hidden behind the frame lip, aimed down at the cars.
- UV-free and cool-neutral, with good colour rendering - the numbers are in CRI and Kelvin.
- Battery or USB, unless you want a cable running down the wall.
Why lighting the inside fixes reflections is in how to stop glare and reflections on a display case.
6. Dust, damp and sun
- Seal the seam. Shadow boxes are framed, not sealed. A strip of felt or low-tack tape where the back meets the frame keeps most dust out.
- Do not seal it damp. Close it on a dry day in a heated room - protecting collectibles from humidity.
- The glazing is almost never UV-filtering. Unless it says so, treat the box as no protection from sunlight at all, and place it accordingly - protecting cars from sunlight.
7. Hanging it
A loaded shadow box is heavier than a picture of the same size, and its depth levers the top fixing away from the wall. Use a fixing chosen for your wall rather than a picture hook - how to hang a display case on the wall.
When a shadow box is the wrong tool

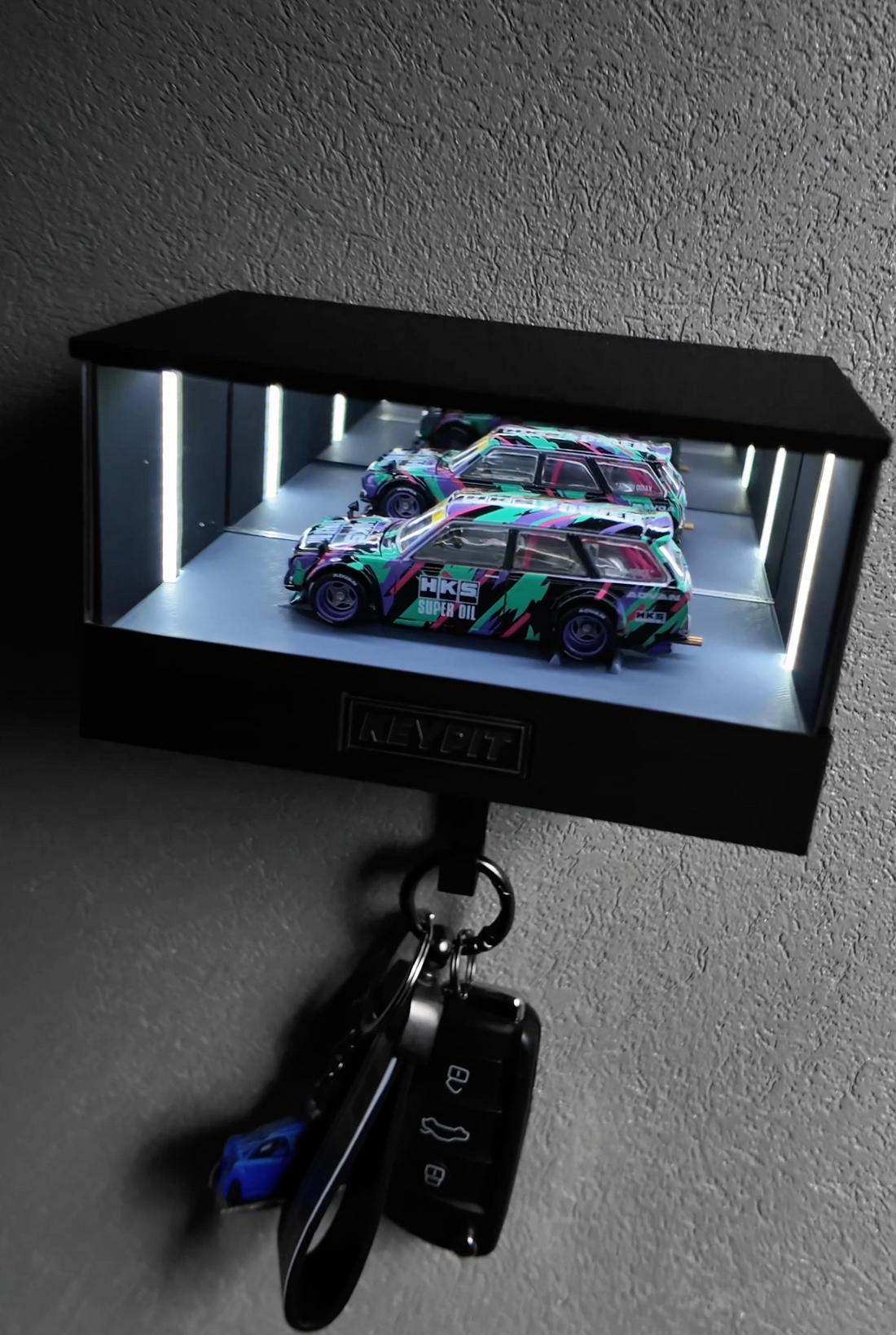

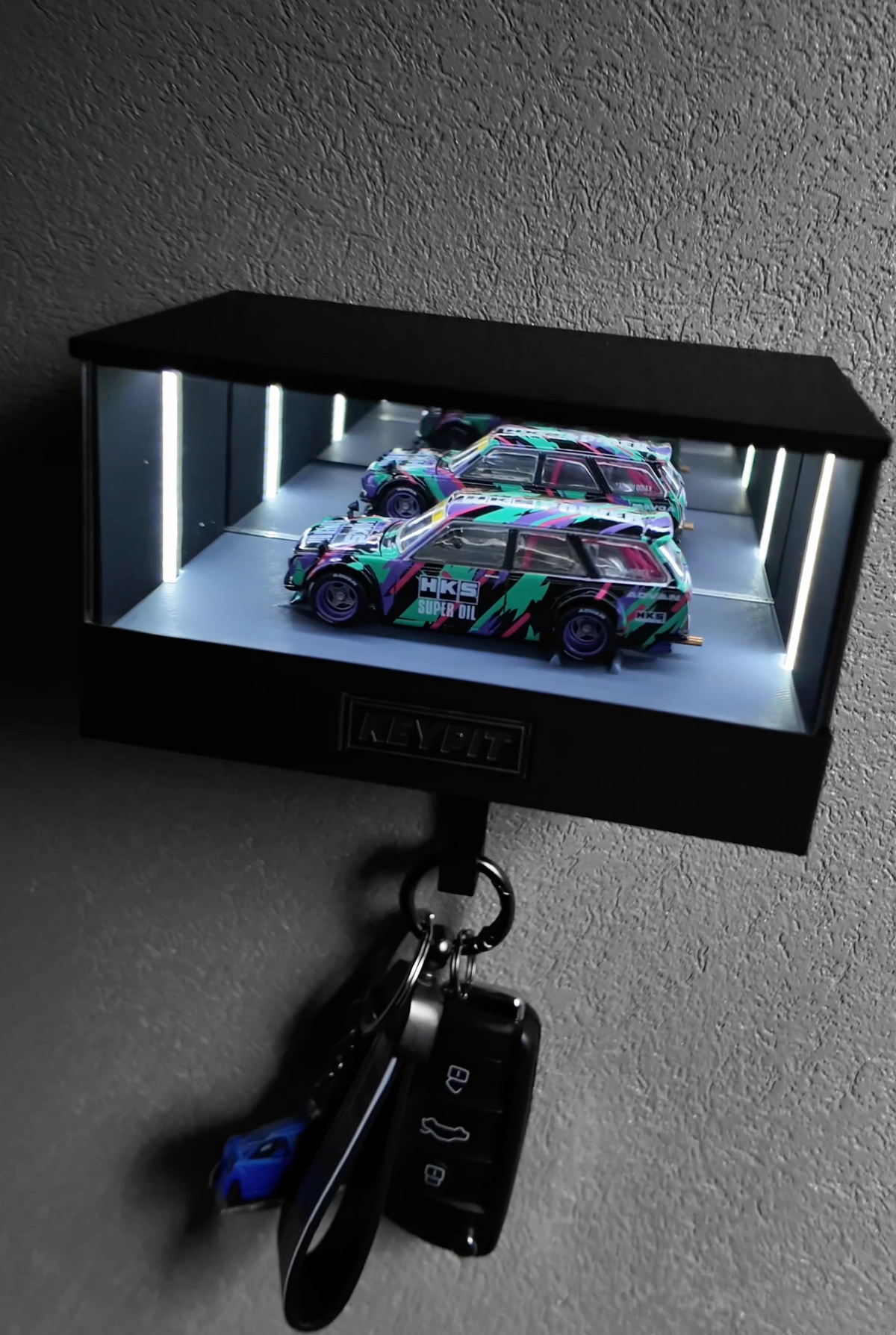

If you expect to swap the cars regularly, a shadow box will annoy you - changing the contents means taking it off the wall and opening the back. For one car that changes with your mood, a front-opening lit case is the format that fits; ours is the Infinity Garage, with dimensions on the specs page. For a fixed group that tells a story, the shadow box wins.
FAQ
How deep should a shadow box be for diecast cars?
Car height plus the mount plus a few millimetres - typically 40-50 mm for 1:64 cars on a low plinth. If the box is deeper, bring the cars forward on mounts instead of letting them sit against the backing in shadow.
How do you attach diecast cars in a shadow box without glue?
Museum putty under one tyre per axle, a small plinth the car is putty-ed or screwed to, or a screw up into the car's chassis screw hole. Avoid glue, tape and hook-and-loop on the car itself - they leave residue on tyres and paint.
What backing should I use?
Not fabric, which sheds fibres onto the cars inside a closed box. Mount board, painted MDF or a printed scene, kept matte and darker than the models.
Can you add lighting to a shadow box?
Yes - a slim UV-free strip along the inside top front edge, hidden behind the frame lip and aimed down. It also cuts reflections, because an unlit box in a lit room acts like a dark mirror.
Is a shadow box safe for valuable cars?
It is a frame rather than a sealed case, and its glazing is rarely UV-filtering, so seal the seam, keep it out of the sun, and close it on a dry day. For a single valuable car you intend to swap, a front-opening case is the better tool.
