A Hot Wheels wind tunnel needs five parts: a clear test section, a fan that pulls air through it, a flow straightener, a smoke or fog source, and light. You can build all five at home with a clear box, a computer fan and a bundle of drinking straws. The part that decides whether it works is not the fan - it is getting smooth air and visible fog at the same time.
The five parts
| Part | Job | DIY version |
|---|---|---|
| Test section | Holds the car and keeps the flow around it | A clear plastic box or acrylic sheet with the ends open |
| Fan | Moves the air | A computer fan, mounted at the outlet end |
| Flow straightener | Turns swirly air into straight, even flow | Drinking straws packed tightly at the inlet |
| Smoke or fog | Makes the air visible | An ultrasonic mist maker, or a fog source fed in through a thin tube |
| Light | Fog is only visible where light catches it | An LED strip along one side or the top |
How to build it
- Make the test section long enough. A 1:64 car is roughly 60-80 mm long; leave plenty of space in front and behind so the flow settles before it reaches the car and the wake has somewhere to go.
- Pull, don't push. Put the fan at the outlet so it draws air through the box. A fan blowing into the box sends its swirl straight at the car.
- Straighten the inlet. Pack drinking straws tightly across the inlet opening. It is the classic home flow straightener and makes the biggest difference to how clean the streamlines look.
- Feed fog in as a thin stream just ahead of the car, at the height you want to watch - usually the roofline.
- Light it from the side against a dark background.
- Mount the car so it can't roll: a little museum putty under the base holds it without marking it.
What usually goes wrong
- Fog spreads into a cloud. Too much fog or too much fan speed. Turn both down; thin streams look better than volume.
- Streamlines wobble. The flow straightener is too short or has gaps.
- Water everywhere. Ultrasonic mist is water; it collects on the box and the car. Dry the car afterwards and keep mist away from the fan's electronics.
- Residue on the paint. Incense and oil-based fog leave a film. Use a residue-free fluid - detail in is fog safe for diecast cars.
Build or buy?
| Build | Buy | |
|---|---|---|
| Best for | The project itself; learning how it works | Using it - display, photos, video |
| Fog | The hardest part to get right | Designed in, with a matched fluid |
| Finish | Looks home-made | Looks like a desk piece |
What a desktop tunnel can and can't tell you about real aerodynamics is in can a 1:64 wind tunnel show real aerodynamics, and the models on the market are compared in desktop wind tunnels for 1:64 diecast compared.
FAQ
How do you make a wind tunnel for Hot Wheels?
Use a clear box as the test section, a computer fan at the outlet to pull air through, drinking straws packed across the inlet to straighten the flow, a thin stream of fog ahead of the car, and a light along one side.
Should the fan push or pull air?
Pull. A fan at the outlet draws smoother air past the car; a fan blowing into the box sends its swirl straight at the model.
What can I use for smoke in a DIY wind tunnel?
An ultrasonic mist maker or a residue-free fog fluid. Avoid incense and oil-based fog, which can leave a film on paint, and dry the car after using water mist.
Why are my streamlines messy?
Usually too much fog, too much fan speed, or a gap in the flow straightener. Turn both down and pack the straws tighter.
Is it cheaper to build or buy a desktop wind tunnel?
Building can cost less in parts, but getting clean, visible fog takes the most trial and error. Buy if you want to use it rather than build it.

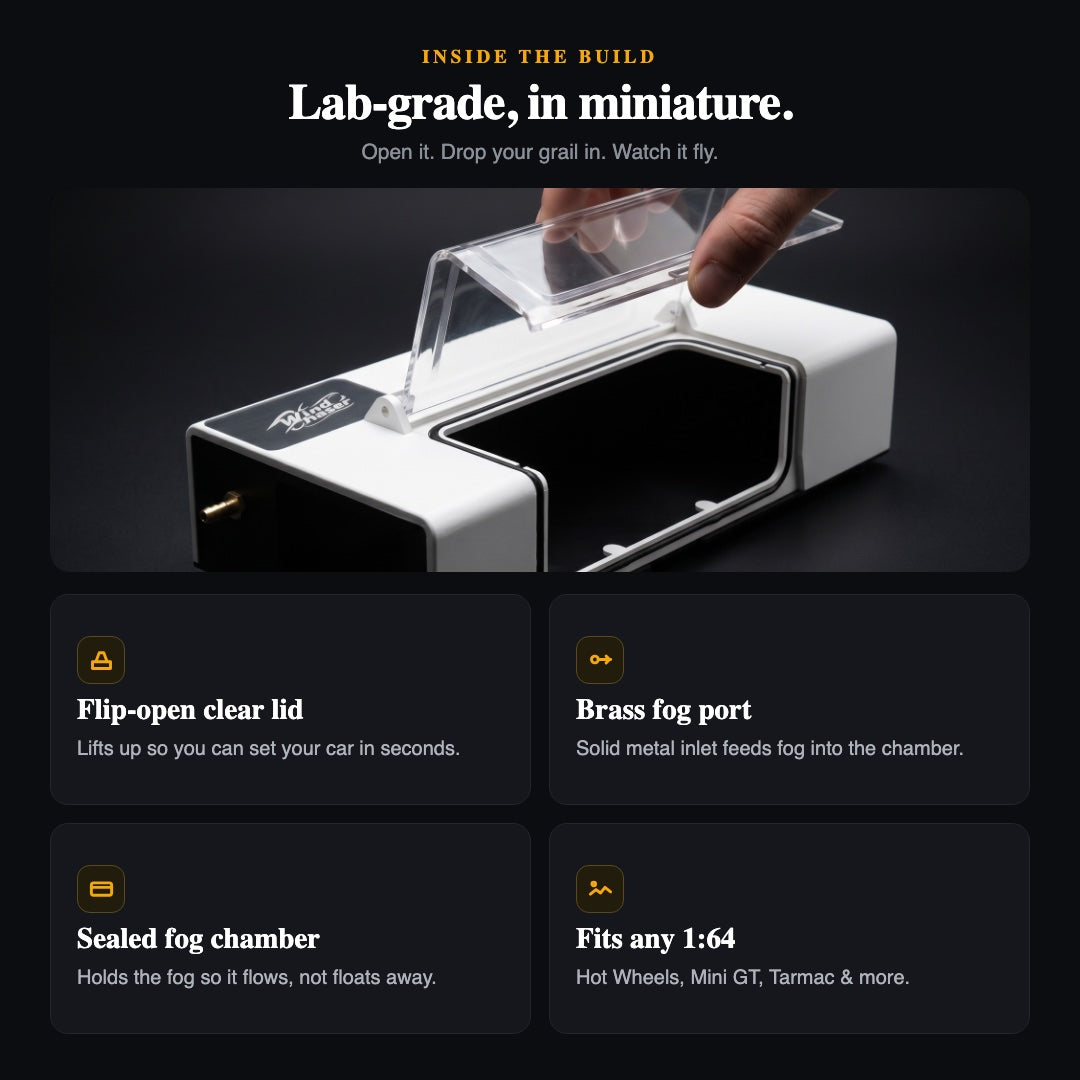

The KP Design wind tunnel
If you'd rather skip the build, the WindChaser has all five parts designed in: a 134 x 54 x 33 mm test chamber for any 1:64 car under 75 mm long, three smoke modes, three tool-free swappable nozzles for shaping the stream, and a fan you control separately from the fog. Fog starts 15-30 seconds after switching on, and the fluid is propylene glycol, vegetable glycerin and distilled water - pH 7.0 neutral and residue-free, so there is no water on the car and no film on the paint. $129. Full specifications are on the specs page.
