Battery-powered lighting works perfectly well for a diecast shelf, and the reason it works better here than in most rooms is that a 1:64 display does not need to be lit for long. A shelf of cars is looked at in passing, so a light that runs briefly on approach is not a compromise - it is the correct behaviour, and it is what makes running on cells rather than mains practical.
This is for anyone who cannot or will not run a cable: renters, plasterboard walls, glass cabinets with nowhere to hide wire, or a shelf that would look worse with a lead down the back of it.
The three catches nobody mentions
1. Runtime is set by how you switch it, not by the cell
The variable that decides whether battery lighting is viable is not capacity - it is hours of use. Always-on strip on cells is a bad idea at any capacity. The same light on a motion sensor, running in short bursts, is a completely different proposition.
Ours is built around exactly that: a 120 degree radar sensor with a 2 m range triggers a cool-white 4000 K UV-free LED for about 20 seconds, then it switches itself off. On a 650 mAh USB-C rechargeable cell that comes out at roughly two weeks per charge at around ten triggers a day. Published specifications are on the specs page.
The general rule transfers to any brand: if it cannot switch itself off, do not run it on batteries.
2. Colour shifts as cells drain
Cheap battery LEDs get warmer and dimmer as voltage falls, which on a diecast shelf means white cars drift toward cream over the last part of the charge. Look for something with a driver that regulates output rather than a strip wired straight to cells - or use rechargeables and top them up before they are flat.
3. The switch ends up in the wrong place
Battery fittings usually put the switch on the unit. On a shelf at eye level that means reaching over the cars every time, which is how mirrors and aerials get knocked off. A sensor, a remote or a switch you can reach without leaning over the display solves it.
The options, compared
| Option | Good for | Watch for |
|---|---|---|

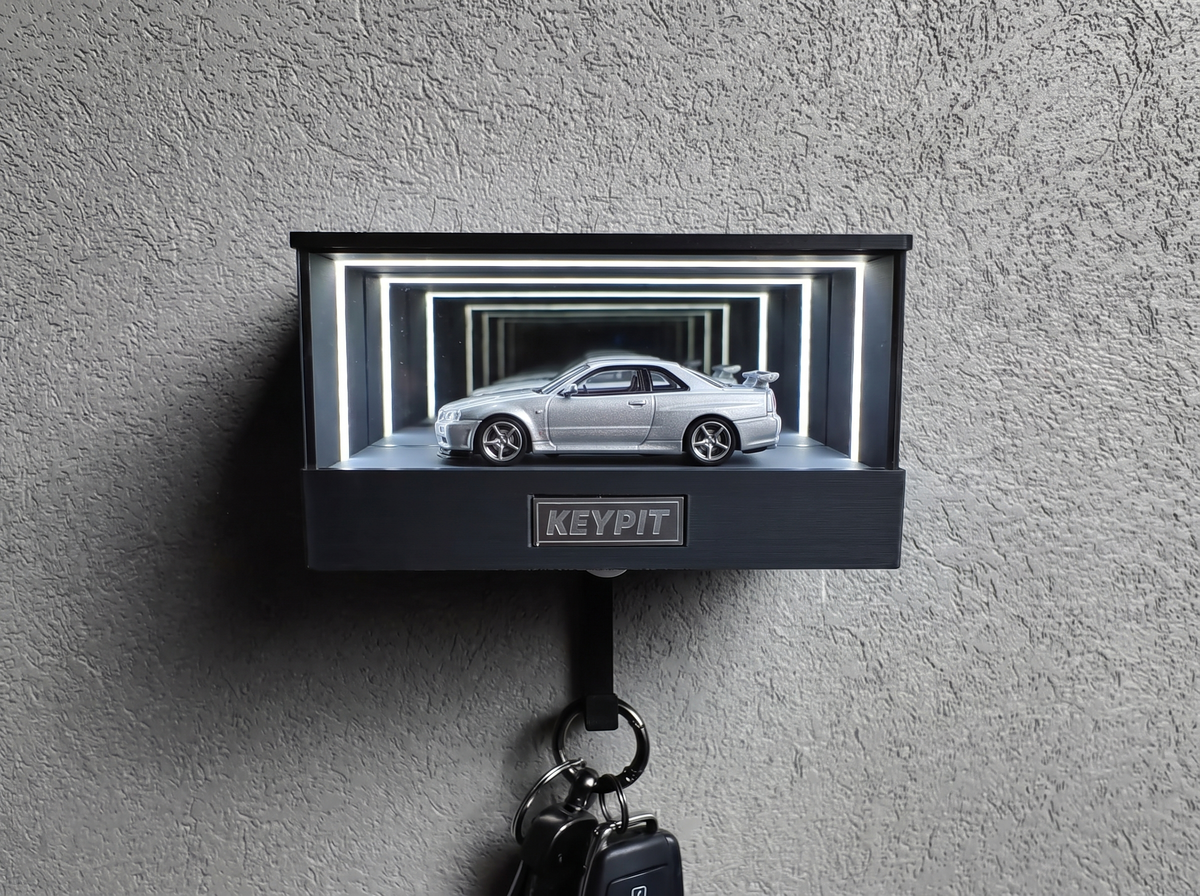

| Self-contained lit case | One or two hero cars | Holds one car - it is not a shelf solution |
| Motion-sensor LED bar | A whole shelf, no wiring | Sensor may trigger on room traffic rather than on you |
| Rechargeable puck lights | Cheap, quick, per-shelf | Hot spots and hard shadows; often low CRI |
| Battery strip with a remote | Even light along a long shelf | Colour drift as cells drain; adhesive backing fails |
| Rechargeable picture light | A wall display above a shelf | Usually warm-white, which flattens metallics |
Specs to insist on, whatever you buy
- 4000 K. Neutral white. Warm 2700-3000 K turns white cars cream and silver beige; 6500 K looks clinical.
- 90+ CRI. Below about 80, reds go flat and Spectraflame-style finishes stop reading as metallic.
- Stated UV-free. UV is what yellows white plastic and fades printed tampos - and a battery light sitting close to the cars is worth checking.
- Rechargeable rather than disposable cells, unless you enjoy buying AAAs.
- A diffuser. Bare emitters give a row of dots and hard shadows; a frosted cover turns it into a line of light.
Mounting without drilling either
Most people using battery lighting are also avoiding fixings, so the two problems arrive together. Adhesive mounting works on smooth, sound, painted plasterboard and fails on texture, wallpaper and fresh paint - the full test to run before you buy anything is in how to display without drilling holes.
One diecast-specific point: a light stuck to the underside of a shelf carries almost no load, but a lit case carries its own weight plus leverage. Those are different mounting problems and the second one needs proper anchors.
Where to put the light
- Inside top front edge, facing back at the cars - not at the back of the shelf, which silhouettes them.
- One shelf, not all of them. Lighting one shelf properly makes a focal point; lighting everything evenly flattens the display and drains cells faster.
- Off the cars. Keep the emitter far enough back that heat is not sitting on rubber tyres.
The full placement reasoning, including glass-cabinet reflections, is in how to light a display cabinet.
FAQ
Can you light a diecast shelf without wiring?
Yes. Battery and rechargeable lighting suits a 1:64 display well, because a shelf of cars is looked at in passing rather than lit continuously - so a light that runs in short bursts on approach is the right behaviour rather than a compromise.
How long does battery display lighting last?
It depends on how it is switched, not on capacity. Always-on strip drains any cell quickly; a motion-triggered light running in short bursts lasts far longer. As a reference point, ours runs about 20 seconds per trigger and gets roughly two weeks per charge at around ten triggers a day.
Why do my battery lights look yellow after a while?
Cheap battery LEDs get warmer and dimmer as cell voltage falls, so white cars drift toward cream late in the charge. Choose a light with a regulated driver, or recharge before the cells are flat.
What colour temperature should diecast lighting be?
4000 K with 90+ CRI. Warm light turns white cars cream and silver beige, and low CRI flattens reds and kills metallic finishes - which defeats the point of lighting the display.
Where should the light go on a shelf?
Along the inside top front edge, facing back toward the cars. Lighting from behind silhouettes them, and lighting every shelf evenly flattens the display and drains batteries faster than lighting one shelf well.
