Short answer: an infinity mirror is two reflective surfaces facing each other — one a full mirror, one a beam splitter (partially reflective, partially transparent). Light bounces between them, and each bounce lets a little escape toward your eye. You see a receding chain of reflections, each dimmer than the last. It's real optics, not a photo trick — and the quality of that beam splitter is exactly what separates a deep tunnel from a shallow, muddy one.
The setup
Three components, in order:
- A full mirror at the back — reflects essentially all light.
- A light source between the two surfaces — usually an LED strip around the edge.
- A beam splitter at the front — a surface that reflects most light back inward but lets a fraction pass through to your eye.
Light leaves the LED, hits the front beam splitter, and most of it bounces back to the rear mirror. That bounces it forward again. Each round trip, a small percentage escapes through the front — and because each escape has travelled further, your brain reads them as a chain of lights receding into the distance. The "tunnel" is depth your eye infers from a stack of reflections in a chamber a few centimetres deep.
Why the reflections fade
Every bounce loses light. If a beam splitter reflects 70% and transmits 30%, then after each round trip the surviving light is a fraction of what it was. Six or eight bounces in, there's very little left — which is why the tunnel always fades out rather than literally going forever. The word "infinity" describes the visual impression, not the physics.
How far it fades is the interesting part, and it's set by three things:
| Factor | Good | Poor |
|---|---|---|
| Beam-splitter quality | Purpose-made optical coating — crisp, even reflections | Cheap mirrored film — reflections blur and grey out fast |
| Surface flatness | Rigid, flat panel — the tunnel stays straight | Thin flexible plastic — tunnel bends or ripples |
| Parallel alignment | Two surfaces exactly parallel — tunnel recedes dead centre | Slightly off — tunnel curves off to one side |
Why cheap ones look shallow
Two failure modes, and you can spot both in listing photos:
- Too few reflections. Plain mirrored plastic absorbs and scatters more per bounce, so the chain dies after three or four. Count them.
- Blurry or grey reflections. A film that isn't optically flat scatters light, so distant reflections smear instead of staying sharp. Look at whether the far end of the tunnel is still crisp or has turned into grey fog.
This is the one quality difference you can partly judge from a photo — unlike CRI or UV, which are invisible. (See how to tell look-alike cases apart.)

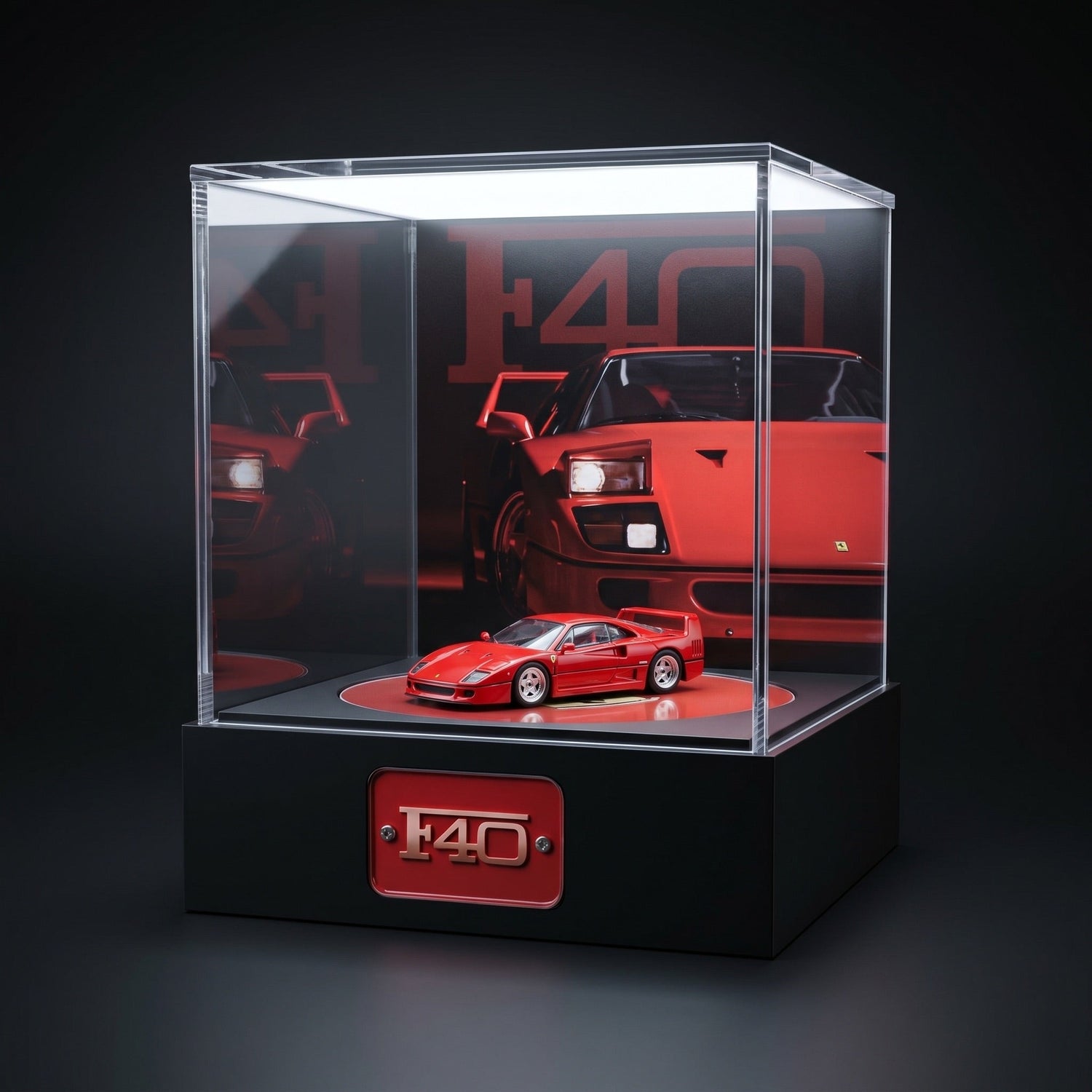

Why it suits a single car so well
The effect needs one subject with space around it. The tunnel forms behind and around the car, so a single model reads as if it's sitting at the mouth of an endless lit garage. Put two or three cars in the same chamber and they block each other's reflections — the depth collapses and you get clutter with a mirror behind it. The optics themselves are an argument for curating rather than crowding.
Light colour matters here too
Because the light bounces repeatedly before reaching you, any colour cast is amplified with each pass. A slightly warm LED becomes noticeably yellow deep in the tunnel. That's why a neutral ~4000K source with high CRI matters more in an infinity chamber than in an ordinary case. (More: CRI and Kelvin explained.)
FAQ
How does an infinity mirror work?
A full mirror faces a beam splitter with a light source between them. Light bounces back and forth, and a fraction escapes through the front each round trip — producing a chain of receding reflections your eye reads as depth.
What is a beam splitter?
A partially reflective, partially transparent surface. It sends most light back into the chamber while letting some through to your eye — the component that makes the effect possible.
Why does the tunnel fade out?
Every bounce loses light, so after several round trips very little remains. "Infinity" describes the impression, not literal endlessness. Better optics simply survive more bounces before fading.
Why do cheap infinity cases look shallow?
Low-grade mirrored film scatters and absorbs more per bounce, so reflections die after three or four and go blurry or grey rather than staying crisp.
